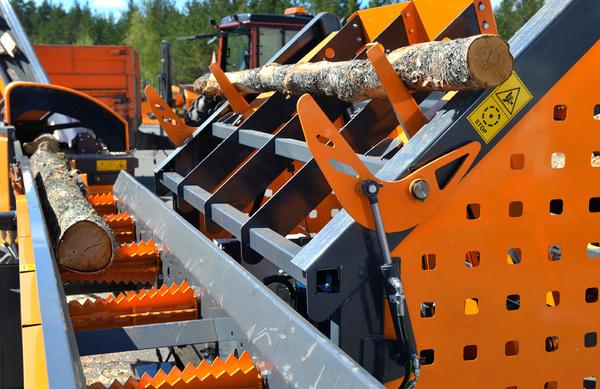

Transfer conveyor

The conveyor receives the logs selected by the Autosorter, or by the manual loading table. It drives them toward the Autochopper firewood processor.

The drive works in two ways: toward the firewood processor for its supply, or in inverted way to eject a log (handled from the control panel of the Autochopper).

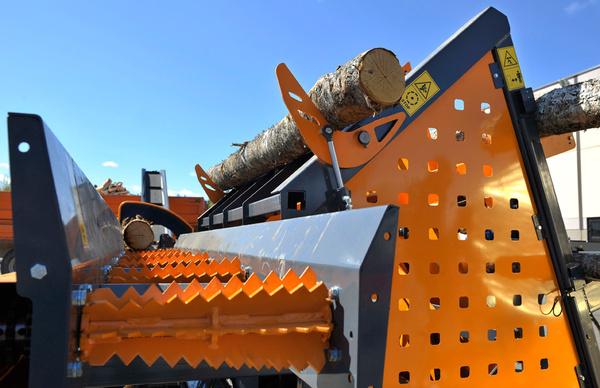

Designed for an intensive use. Its roller are cone-shaped and toothed, activated by a chain driven with its own hydraulic motor, driving logs right to the saw reliably, no matter what diameter it is.

Conical roller bearings forward the logs straight to the saw.

Technical data

-Length 4015 mm
-Six adjustable discharge heights from 85 to 110 cm
-Max diameter of logs 40 cm
