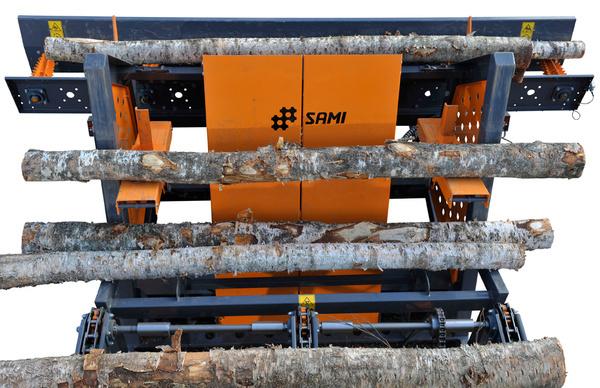

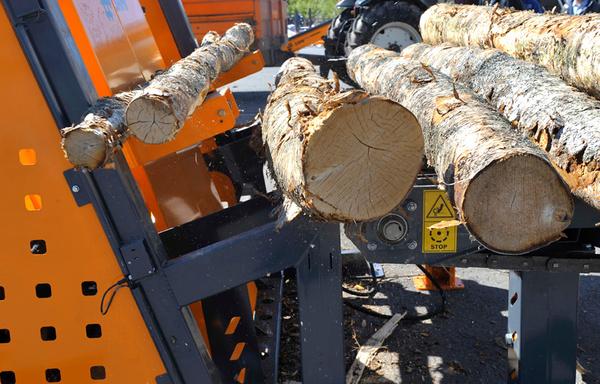

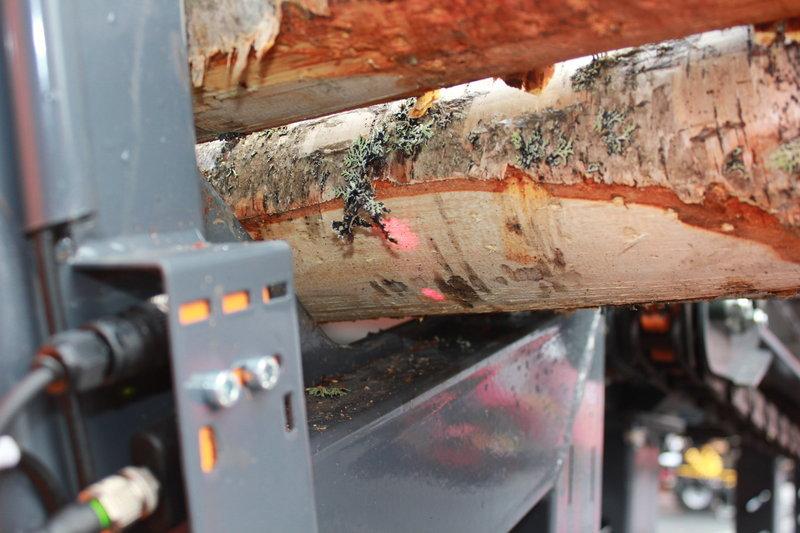

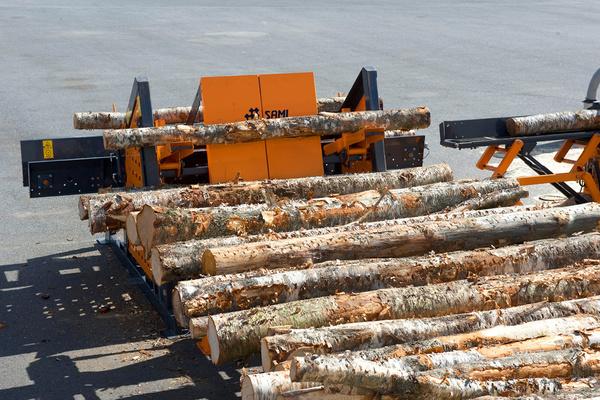

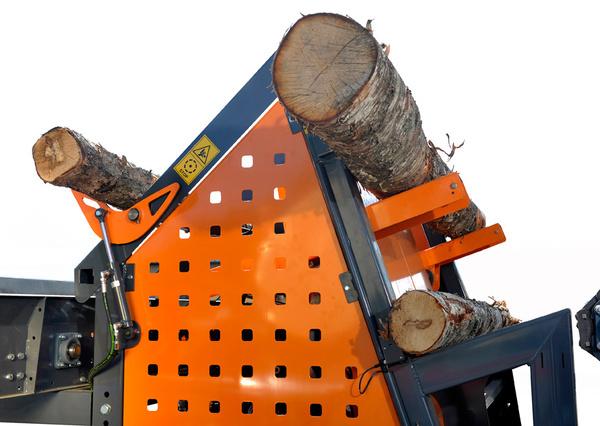

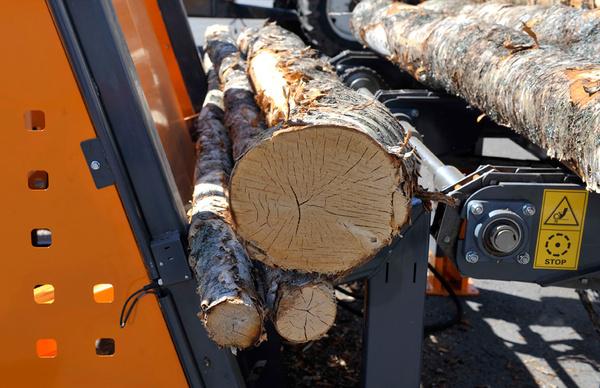

Our sorter is equipped of four lines of sensors. It knows everything, it does everything. Appeal of wood from the loading table, log selection, sending logs to the transfer conveyor, progressively, at the same rhythm as the sawing process. Efficient and quick wood supply to the Autochopper.
The sorting process is methodical and settled.
The sorter has its own hydraulic system and electric motor. Everything is handled from the Autochopper’s control panel and it can be operated manually too.
|Width without transfer conveyor (mm)||2340|
|Width with transfer conveyor (mm)||4015|
|Max. load (kg)||1200|
|Hydr. operating pressure(bar)||170|
|Electric motor (kW)||5,5|
|Switching voltage (V/Hz)||400/50|
